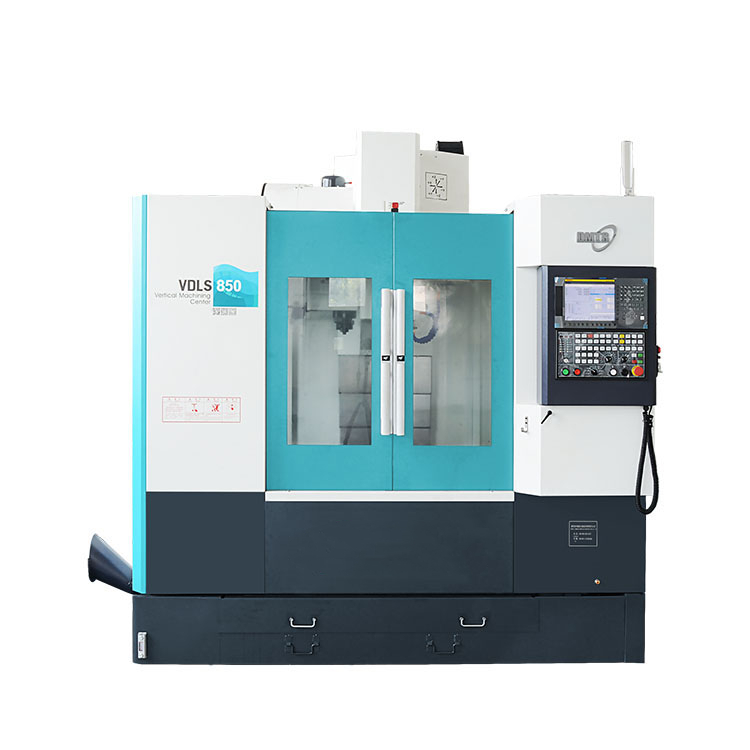

DMTG Vertical Machining Center Model: VDLS850

DMTG machine tool
dmtg vertical machining center
DMTG Vertical Machining Center Model:VDLS850Worktable sizemm1000*500
TABLET-Slot (Quantity*Width*Distance)mm5*18*100
Max load of worktablekg500
TRAVELX/Y/Z axis travelmm860/510/560
X/Y/Z axis guideway typemmLinear guideway
Distance from spindle center to columnmm607
Distance from spindle nose to tablemm145~705
FEED RATERapid traverse of X/Y/Z axism/min36/36/30
Cutting feed ratemm/min0~10000
SPINDLEMax spindle speedr/min12000
Spindle taperNo.40 (7:24)
ATC systemTool magazine capacity24T/Arm
Tool shank typeBT40
Max. tool weightkg8
Max. tool diameter (w/o adjacent tools)mm24T: φ78/155
Max.tool lengthmm300
Time of tool change (T-T)s24T: 2.5
ACCURACYX/Y/Z axis positioning accuracymm0.008/0.008/0.008
X/Y/Z axis repeatability accuracymm0.005/0.005/0.005
CONTROL SYSTEMController GSK/SIEMENS/FANU
