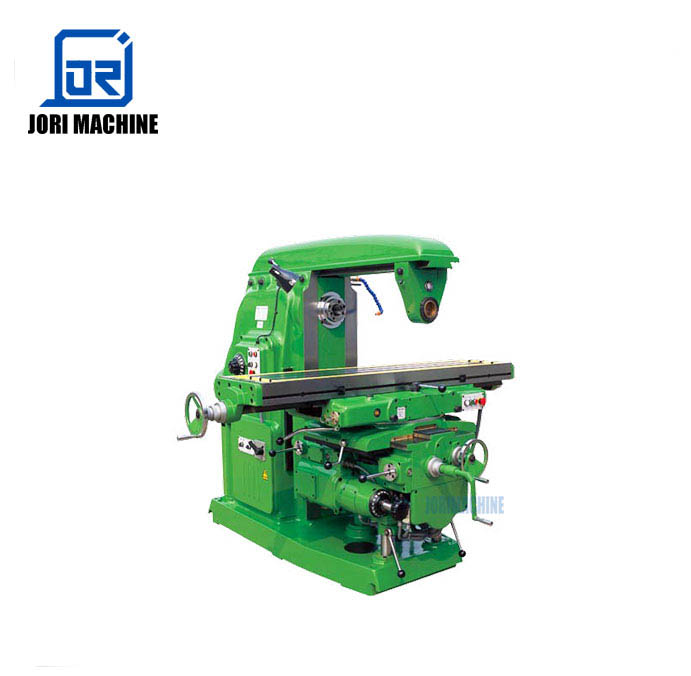

| Specifications | Units | X6140 |
|---|---|---|
| Table size | mm | 1700×400 |
| Max. load of table | kg | 800 |
| Number/Width/Distance of T-slot | mm | 3-18-90 |
| longitudinal travel (manual/auto) | mm | 900/880 |
| transverse travel (manual/auto) | mm | 315/300 |
| vertical travel (manual/auto) | mm | 380/360 |
| Spindle speed | rpm | 30-1500 |
| cutting feed speed | mm/min | X,Y: 23.5-1180, Z: 8-394 |
| Spindle motor power | kw | 11 |
| Overall dimension | mm | 2560×2130×1800 |
| Machine weight | kg | 3850 |
